The SHANGCHAI Series Silent Type Diesel Generator Set is designed for reliable performance, durability, and low-noise operation. Built with high-quality components and advanced manufacturing standards, it is widely used for industrial, commercial, and standby power applications.

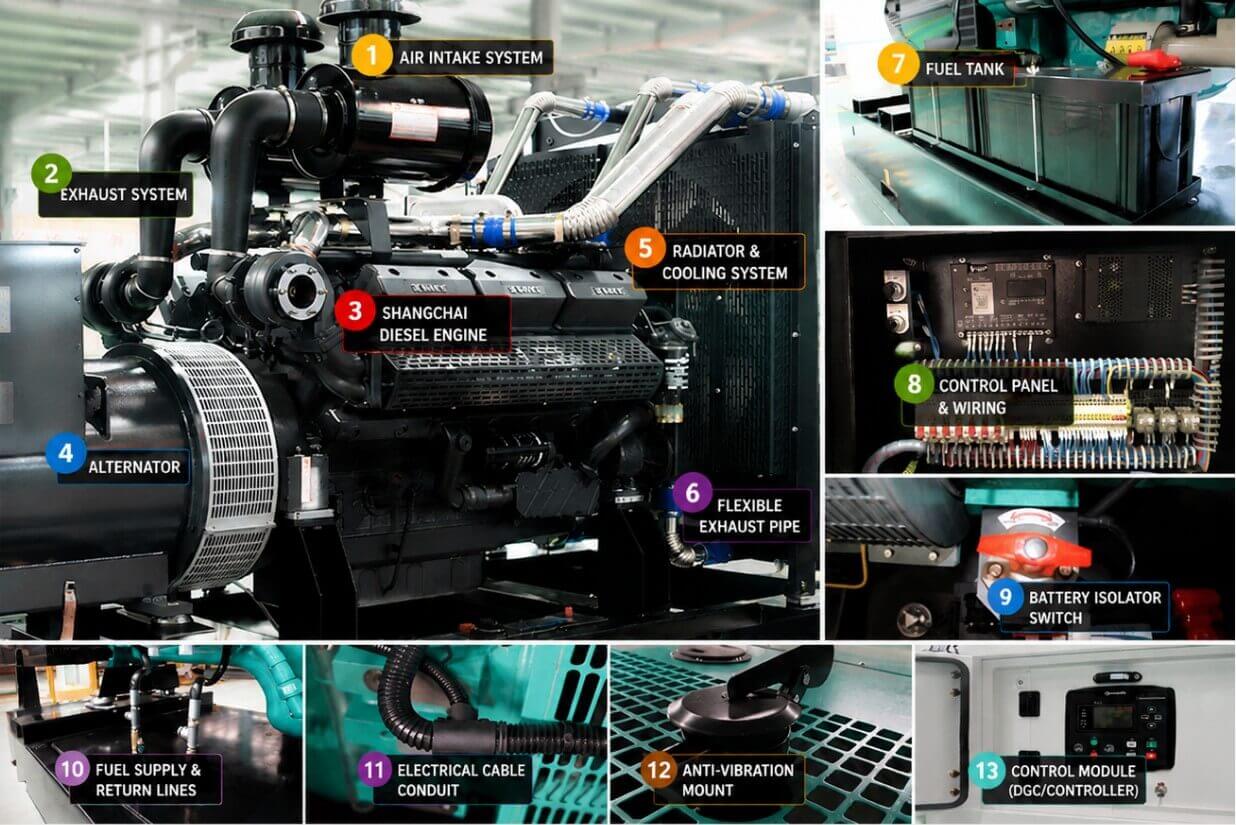

Each MBKL SHANGCHAI generator set is equipped with premium SHANGCHAI engines and high-efficiency alternators. The system delivers strong power output, high torque performance, fast engine starting, and excellent fuel efficiency. It is designed for easy maintenance and simple operation, ensuring long-term stable performance.
The generator set features a compact structure with optimized space design, making it easy to install and transport. Despite its small footprint, it offers robust performance and a long service life, making it ideal for both stationary and mobile applications.

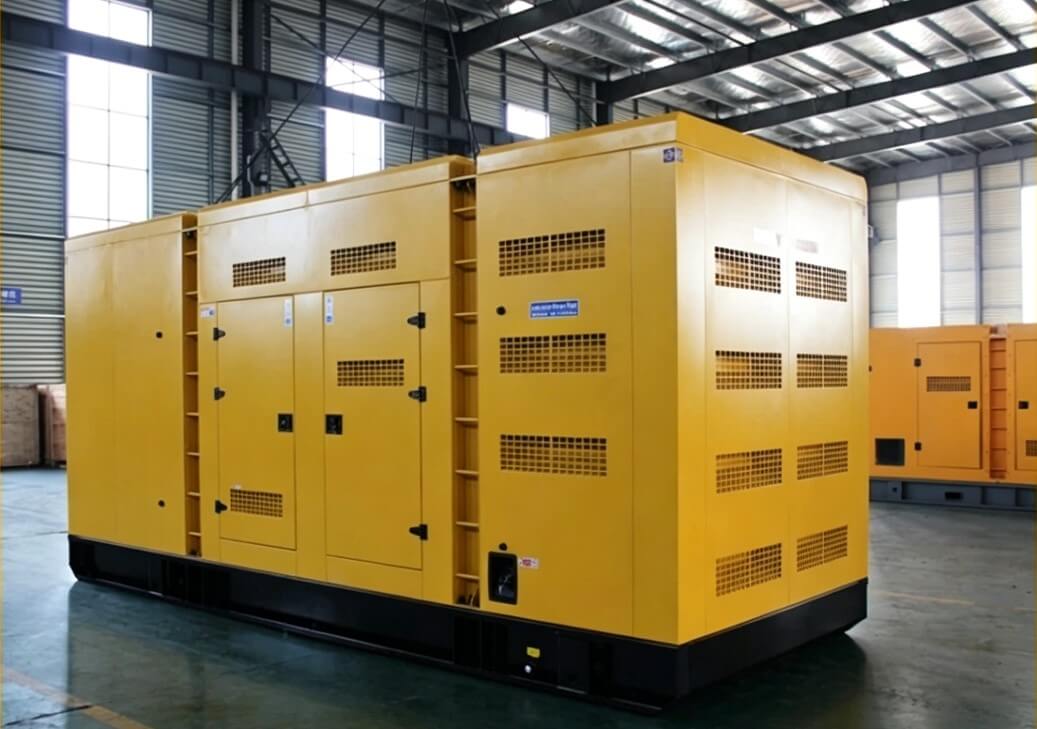

The soundproof canopy is manufactured using high-quality thick steel with advanced powder-coated finishing. This ensures excellent corrosion resistance, scratch protection, and long-lasting anti-rust performance, even in harsh environmental conditions.
The control panel, service doors, and canopy structure are designed with a waterproof and dustproof system. This effectively prevents rain, dust, and moisture from entering the generator, ensuring safe and stable operation in outdoor environments.
All movable components and internal spare parts are securely fixed to minimize vibration during operation. This enhances stability, reduces noise levels, and improves the overall durability of the generator set.
SHANGHCAI Powered Series Silent Type Gensets Configuration Table:
No. | GENSET | Prime Power | Standby Power | Engine | Cylinder | Displacement | Bore*Stroke | Fuel Consumption | Dimension | ||
KVA | KW | KVA | KW | SDEC | (nos) | (L) | (mm) | (g/kw·h) | mm | ||
1 | LW-S55 | 68 | 55 | 75 | 60 | SC4H95D2 | 4 | 4.3 | 105*124 | 204 | 2400×1000×1530 |
2 | LW-S75 | 93 | 75 | 103 | 82 | SC4H115D2 | 4 | 4.3 | 105*124 | 204 | 3000×1200×1740 |
3 | LW-S100 | 125 | 100 | 137 | 110 | SC4H160D2 | 4 | 4.3 | 105*124 | 198 | 3000×1200×1740 |
4 | LW-S120 | 150 | 120 | 165 | 132 | SC4H180D2 | 4 | 4.3 | 105*124 | 198 | 3000×1200×1740 |
5 | LW-S130 | 162 | 130 | 178 | 143 | SC8D220D2 | 6 | 8.27 | 114*135 | 225. | 3300×1400×1940 |
6 | LW-S150 | 187 | 150 | 206 | 165 | SC7H230D2 | 6 | 6.5 | 105*124 | 193 | 3300×1400×1940 |
7 | LW-S160 | 200 | 160 | 220 | 176 | SC7H250D2 | 6 | 6.5 | 105*124 | 193 | 3300×1400×1940 |
8 | LW-S180 | 225 | 180 | 247 | 198 | SC8D280D2 | 6 | 8.27 | 114*135 | 193 | 3300×1400×1940 |
9 | LW-S200 | 250 | 200 | 275 | 220 | SC13G310D2 | 6 | 12.8 | 135*150 | 200 | 3300×1400×1940 |
10 | LW-S200 | 250 | 200 | 275 | 220 | SC9D310D2 | 6 | 8.3 | 114*135 | 200 | 3300×1400×1940 |
11 | LW-S220 | 275 | 220 | 302 | 242 | SC9D340D2 | 6 | 8.3 | 114*135 | 225 | 4000×1800×2300 |
12 | LW-S250 | 312 | 250 | 343 | 275 | SC13G355D2 | 6 | 12.8 | 135*150 | 225 | 4000×1800×2300 |
13 | LW-S280 | 350 | 280 | 385 | 308 | SC13G420D2 | 6 | 12.8 | 135*150 | 200 | 4000×1800×2300 |
14 | LW-S300 | 375 | 300 | 412 | 330 | SC12E460D2 | 6 | 12.8 | 135*150 | 225 | 4000×1800×2300 |
15 | LW-S350 | 437 | 350 | 481 | 385 | SC15G500D2 | 6 | 14.1 | 135*165 | 205 | 4300×2100×2500 |
16 | LW-S400 | 500 | 400 | 550 | 440 | SC25G610D2 | 12 | 26.6 | 135*155 | 231 | 4500×2100×2600 |
17 | LW-S450 | 562 | 450 | 618 | 495 | SC25G690D2 | 12 | 26.6 | 135*155 | 231 | 4500×2100×2600 |
18 | LW-S500 | 625 | 500 | 618 | 495 | SC27G755D2 | 12 | 26.6 | 135*155 | 231 | 4700×2100×2600 |
19 | LW-S550 | 687 | 550 | 687 | 550 | SC27G830D2 | 12 | 26.6 | 135*55 | 202 | 4700×2100×2600 |
20 | LW-S600 | 750 | 600 | 756 | 605 | SC33W990D2 | 6 | 32.8 | 180*215 | 215 | 6000×2300×2930 |
21 | LW-S800 | 1000 | 800 | 825 | 660 | SC33W1150D2 | 6 | 32.8 | 180*215 | 215 | 6000×2300×2930 |
